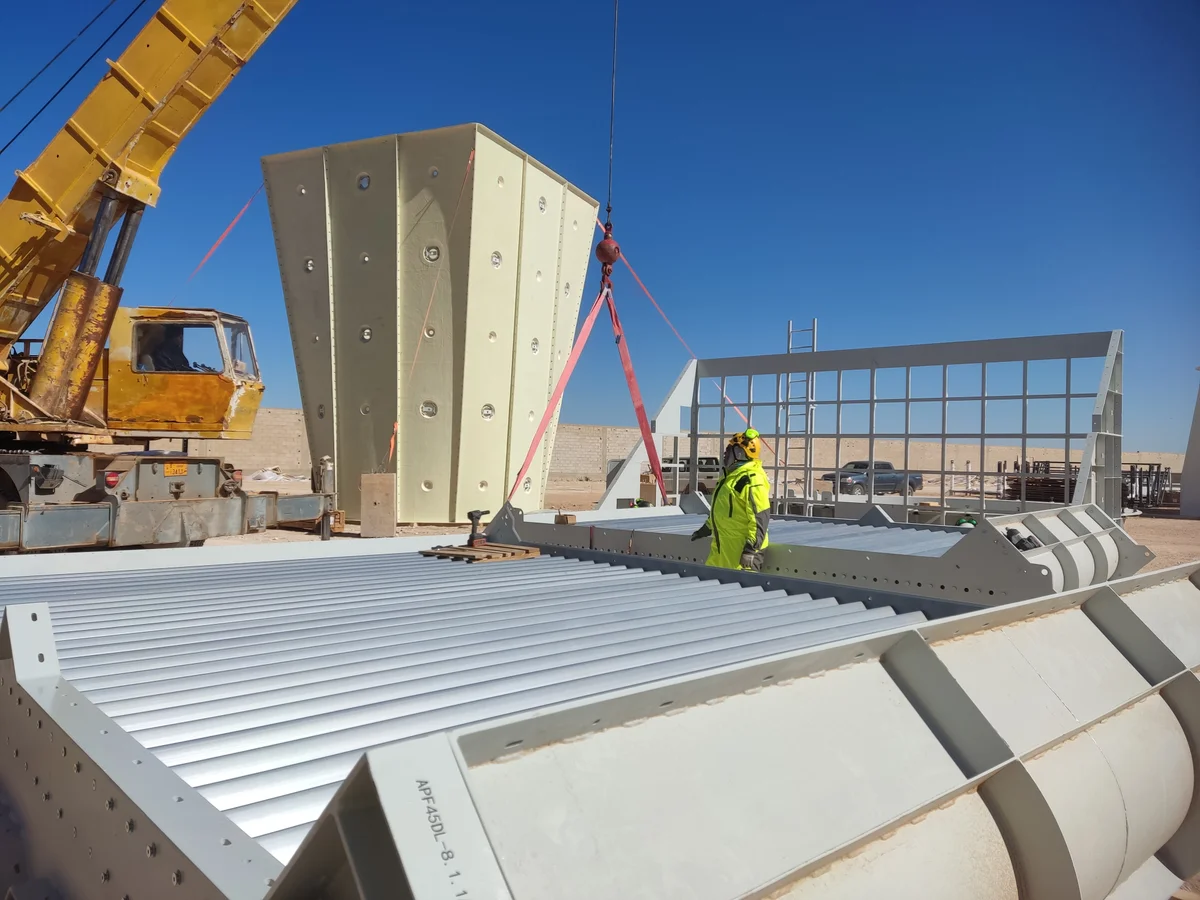

Closed-Circuit vs Open-Circuit Wind Tunnels for Research

Building a new aerodynamics laboratory or expanding an industrial testing center always starts with an important choice. Before approving the building layout or pouring the foundation, you need to answer a fundamental engineering question: which wind tunnel architecture matches your long-term research goals and operating budget?

This choice comes down to two fundamentally different layouts: a closed-circuit wind tunnel (also known as a return-flow wind tunnel ) and an open-circuit wind tunnel .

Each configuration has a major impact on capital expenditure (CAPEX), monthly electricity costs, and the accuracy of the data you collect. Let's look at how these two designs perform in practice.

1. Closed Circuit (Return Flow): Precision and Stability

In a closed-circuit wind tunnel, air circulates continuously through a sealed loop of ducts. After passing through the test section, the flow is redirected by turning vanes back toward the axial fan intake.

Advantages

• Exceptional energy efficiency: The fan does not need to accelerate stationary air from zero every time; it uses the kinetic energy already moving through the loop. A return-flow system consumes 60-70% less electricity than an open tunnel of similar size and flow speed. Over several years, this difference can repay the additional cost of the structure.
• High flow quality: Full isolation from the room atmosphere eliminates drafts, dust, temperature swings, and humidity fluctuations. This provides a clean, predictable laminar flow in the test section.
• Precise temperature control: In a closed loop, air temperature can be actively managed with cooling vanes or heat exchangers, which is critical for calibrating sensitive sensors and testing heat-generating models.

Disadvantages

• Higher upfront investment: A recirculating loop requires complex ductwork, turning vanes, and substantial structural elements, increasing initial CAPEX.
• Larger footprint: The wider two-channel layout requires more floor area to accommodate the return path.

---

2. Open Circuit (Eiffel Type): Compact and Simple

An open-circuit wind tunnel draws air directly from the laboratory room, passes it through a settling chamber and the test section, and then discharges it outside, either back into the room or into the atmosphere.

Advantages

• Lower initial CAPEX: A simple linear structure requires fewer materials and can be installed quickly.
• Compact layout: The straight-through design fits well into narrow laboratory spaces, leaving room for other equipment.
• No heat buildup: Air is constantly replaced, so the system does not need dedicated cooling loops to remove heat generated by the fans.

Disadvantages

• High electricity bills: The kinetic energy of the exhausted air is lost. The motors must continuously accelerate fresh air, which increases operating costs.
• Sensitivity to the external environment: Any draft in the laboratory, from an open bay door to the building ventilation system switching on, immediately affects flow stability in the test section.
• High noise level: Discharging high-speed airflow directly into the room creates strong noise and requires operators to use hearing protection.

---

3. Performance Comparison

---

4. Long-Term ROI Assessment

If your work is limited to basic training or occasional low-speed qualitative experiments, an open-circuit wind tunnel is a practical and budget-friendly starting point. But for industrial R&D centers and serious aerospace research, the closed-circuit wind tunnel is the standard. The recirculating loop provides the flow stability required for critical tests, while low energy consumption quickly turns higher initial CAPEX into long-term operating savings.

Contact the TunnelTech project team in Stuttgart to receive a custom equipment layout and power consumption calculation for your laboratory.
