PRO Series

Flagship

TT45 PRO

Revolutionary Efficiency

The pinnacle of German aerodynamic engineering. Featuring revolutionary passive ventilation technology, the TT45 delivers up to 60% energy savings and the world’s quietest operation at just 51 dBA.

Chamber Diameter

4.5 m (14'9")

Max Speed

320 km/h

Power

1,260 kW

Noise Level

51 dBA

Key Features

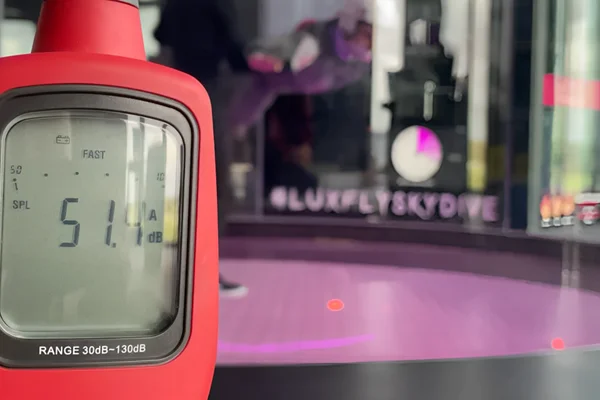

World's quietest at 51 dBA

Achieves up to 60% energy savings versus competitor systems

Revolutionary passive ventilation cooling

High-velocity airflow reaching 320 km/h for elite performance

16m maximum glass height

Industry-leading aerodynamic efficiency (0.183 drag coefficient)

Technical Specifications

General

Chamber Diameter4.5 m (14'9")

Glass Height (Default)8 m (26'2")

Glass Height (Maximum)16 m (52'5")

Chamber Area15.9 sq.m.

Diffusion Rate2.12

Ideal Applications

World Championships

Engineer FAI-compliant facilities capable of hosting professional indoor skydiving competitions and leagues.

Professional Training

Provide precision airflow and turbulence-free conditions for elite skydiver progression and technical coaching.

Military Training

Facilitate safe, cost-effective, and realistic freefall simulation for paratroopers and defense personnel.

Premium Entertainment

High-end entertainment destinations

Ready to Start Your Project?

Collaborate with our Stuttgart-based engineering team to configure the ideal high-performance wind tunnel solution for your specific goals.

Equipment assembly(25)

assembly and installation of wind tunnel equipment(54)

Facility construction(18)

Human flight(86)

Professional skydivers and BASE athletes(59)

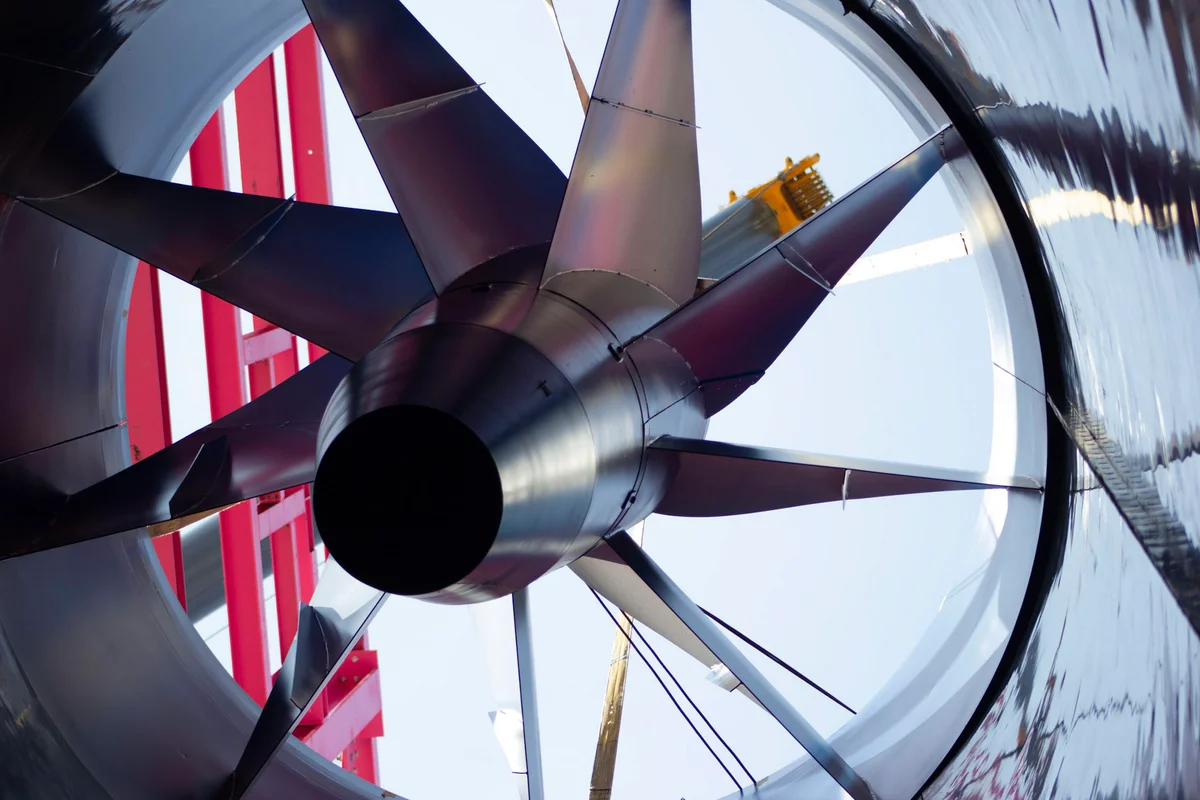

The photo captures the installation of a main axial fan unit for the Luxfly wind tunnel in Luxembourg. The assembly features a large-diameter rotor with carbon-fiber blades mounted on a vertical axis. A crane positions the fan component within the ductwork, surrounded by the facility's red steel support structure. This component powers the airflow for a TunnelTech TT45 PRO system.

Installation of axial fan assembly for TT45 PRO wind tunnel at Luxfly.

The photo captures the installation of a main axial fan unit for the Luxfly wind tunnel in Luxembourg. The assembly features a large-diameter rotor with carbon-fiber blades mounted on a vertical axis. A crane positions the fan component within the ductwork, surrounded by the facility's red steel support structure. This component powers the airflow for a TunnelTech TT45 PRO system.

2 / 25

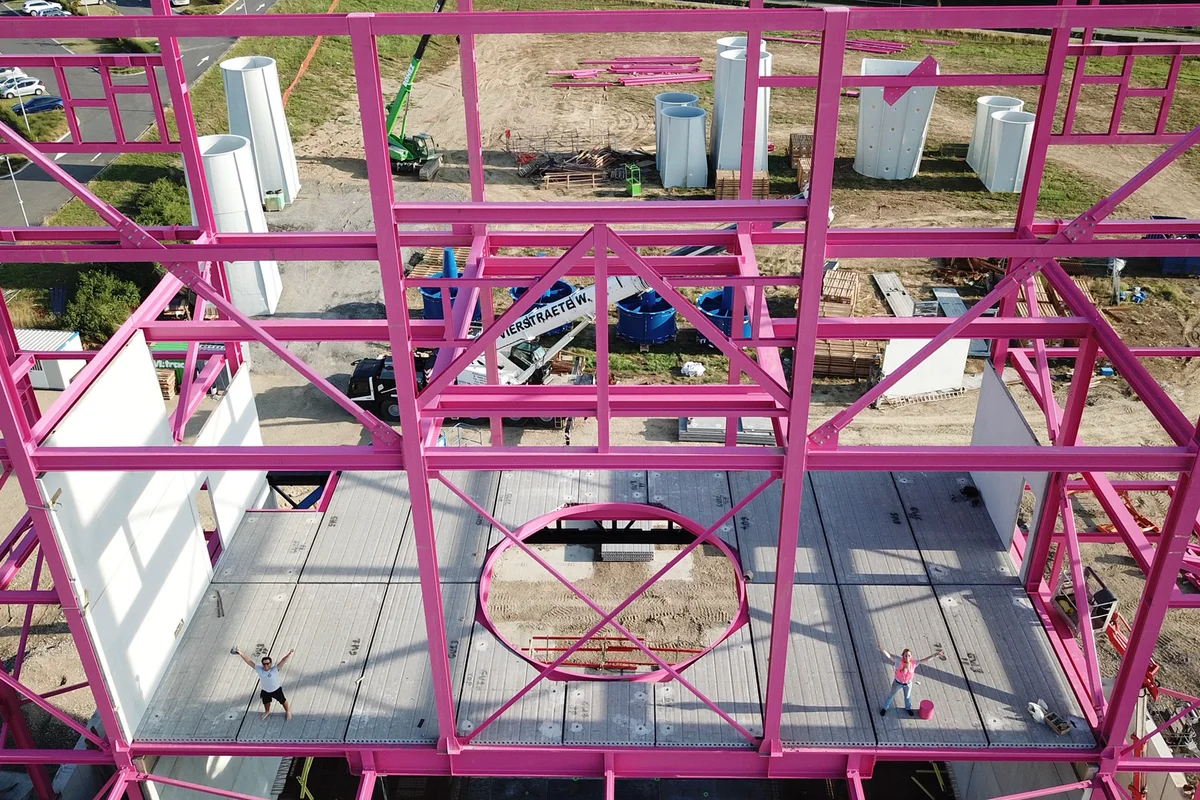

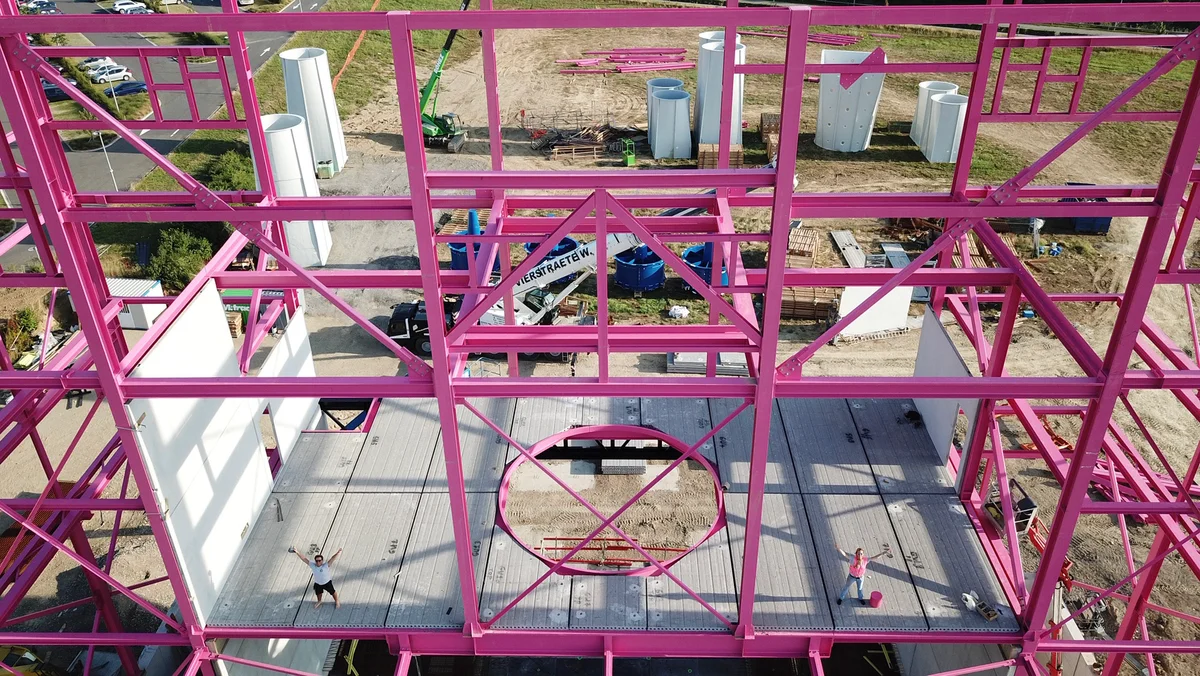

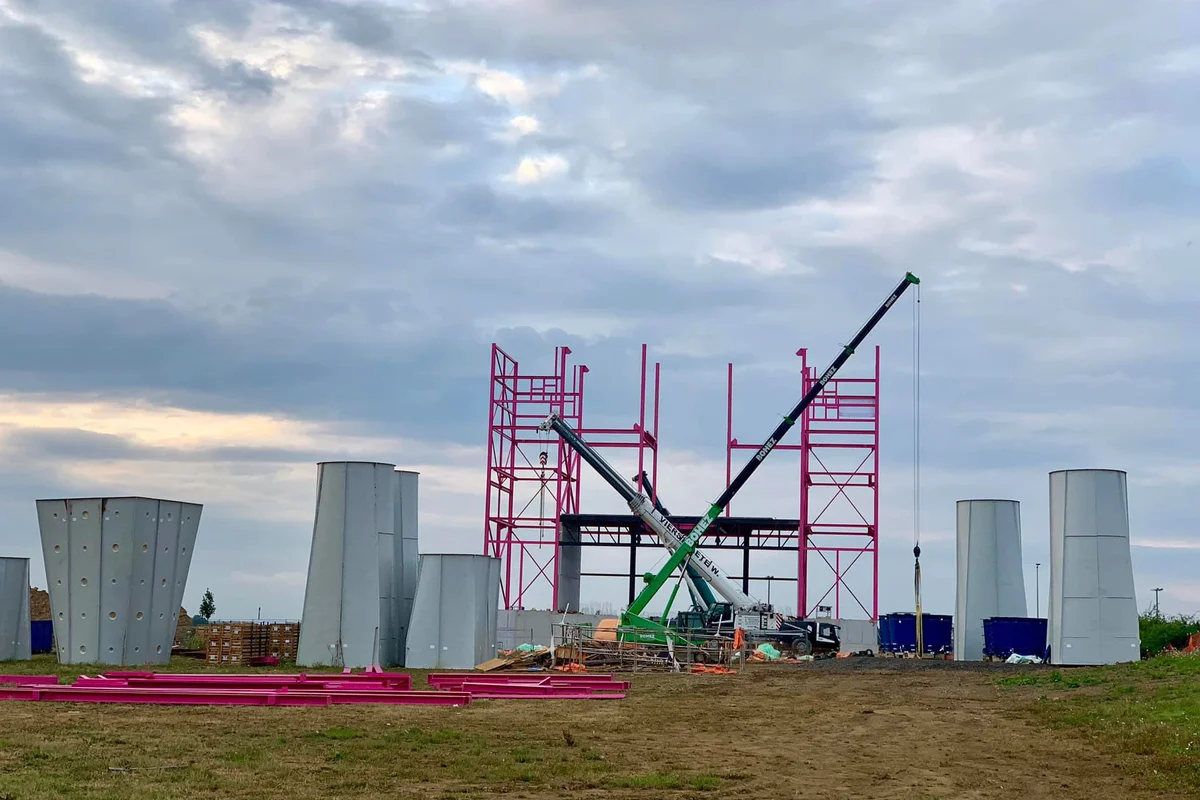

The image shows the assembly process of the structural components for the Luxfly building, including the iconic pink load-bearing beams.

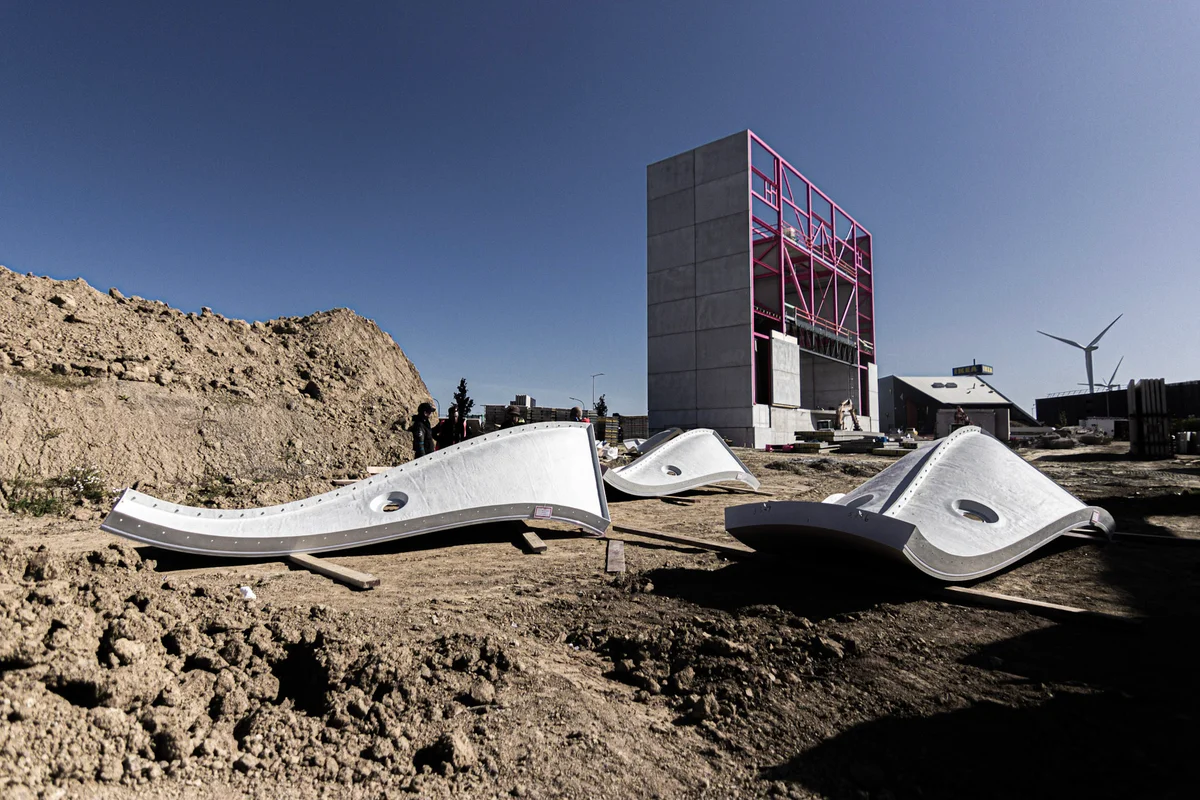

The photo shows the glass-plastic components of the TT45 Pro wind tunnel's airjet (confusor) under assembly at the Luxfly facility. These elements are part of the aerodynamic system designed for stable, low-turbulence airflow.

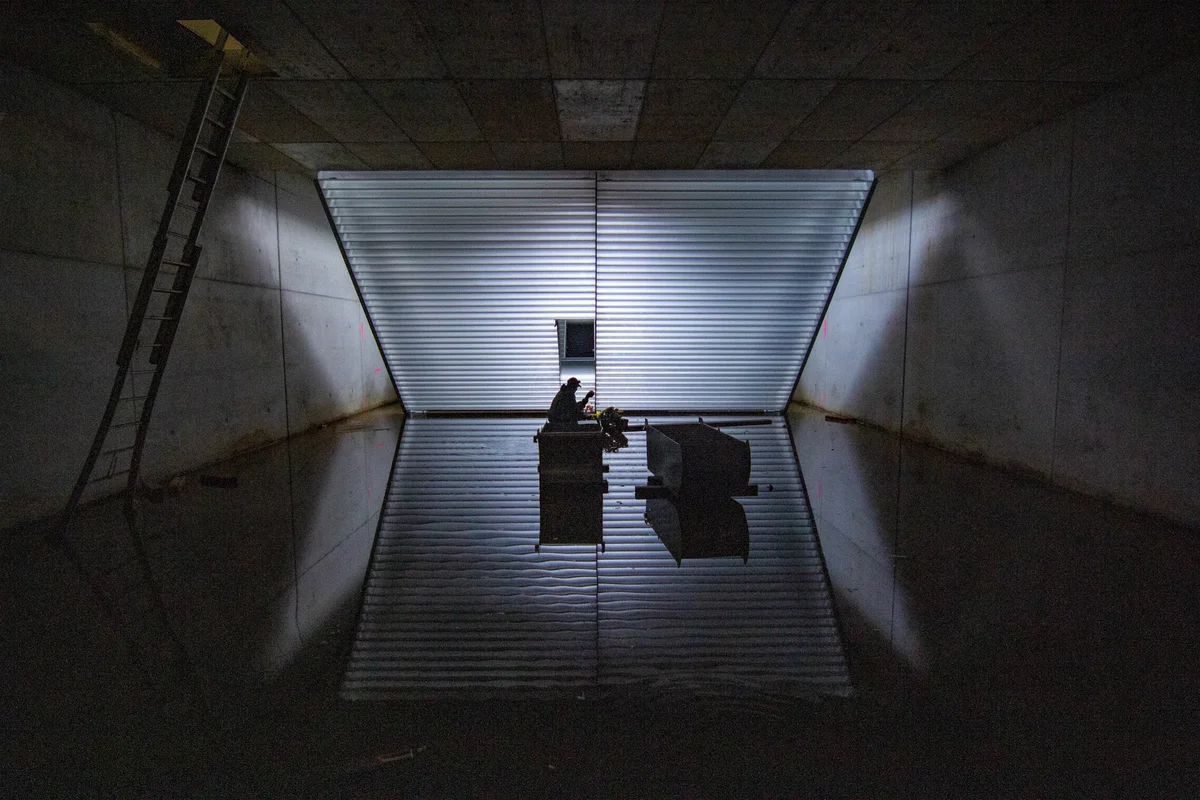

The image shows the final assembly of the turning vanes in the lower duct section of the Luxfly wind tunnel. Turning vanes are used to redirect airflow efficiently within the recirculation loop, minimizing turbulence and pressure losses.

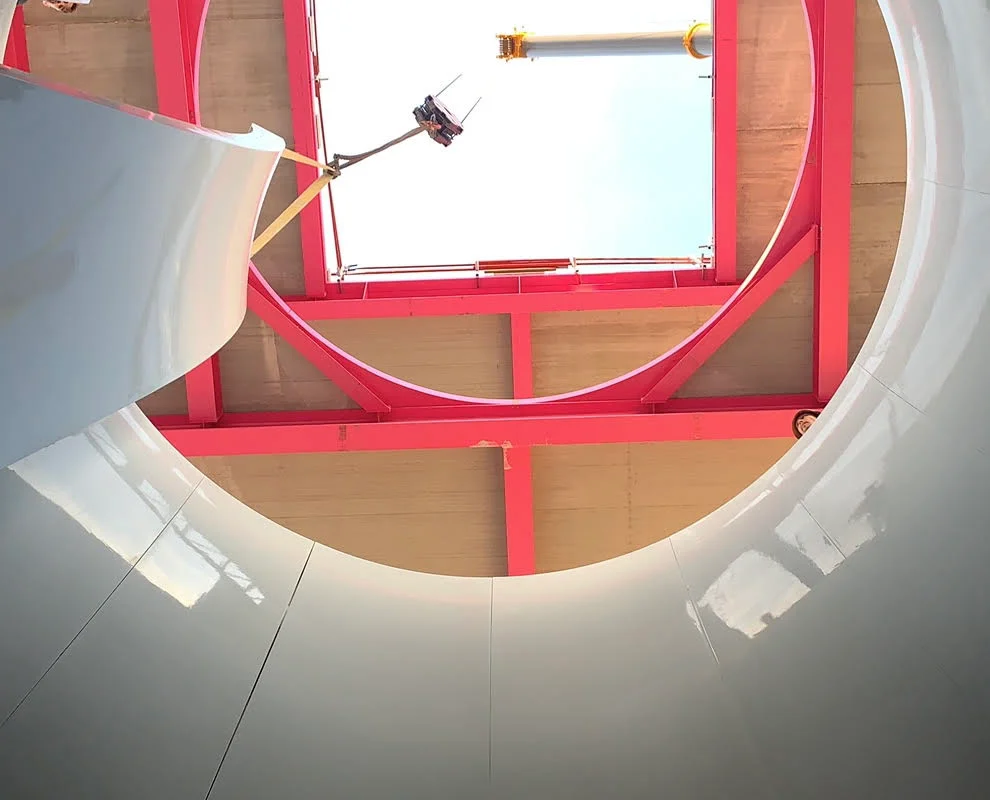

Installation and assembly of the confuser in the flight chamber of the TT45 Pro wind tunnel. The Confuzor is a critical aerodynamic component that ensures smooth airflow transition into the flight chamber.

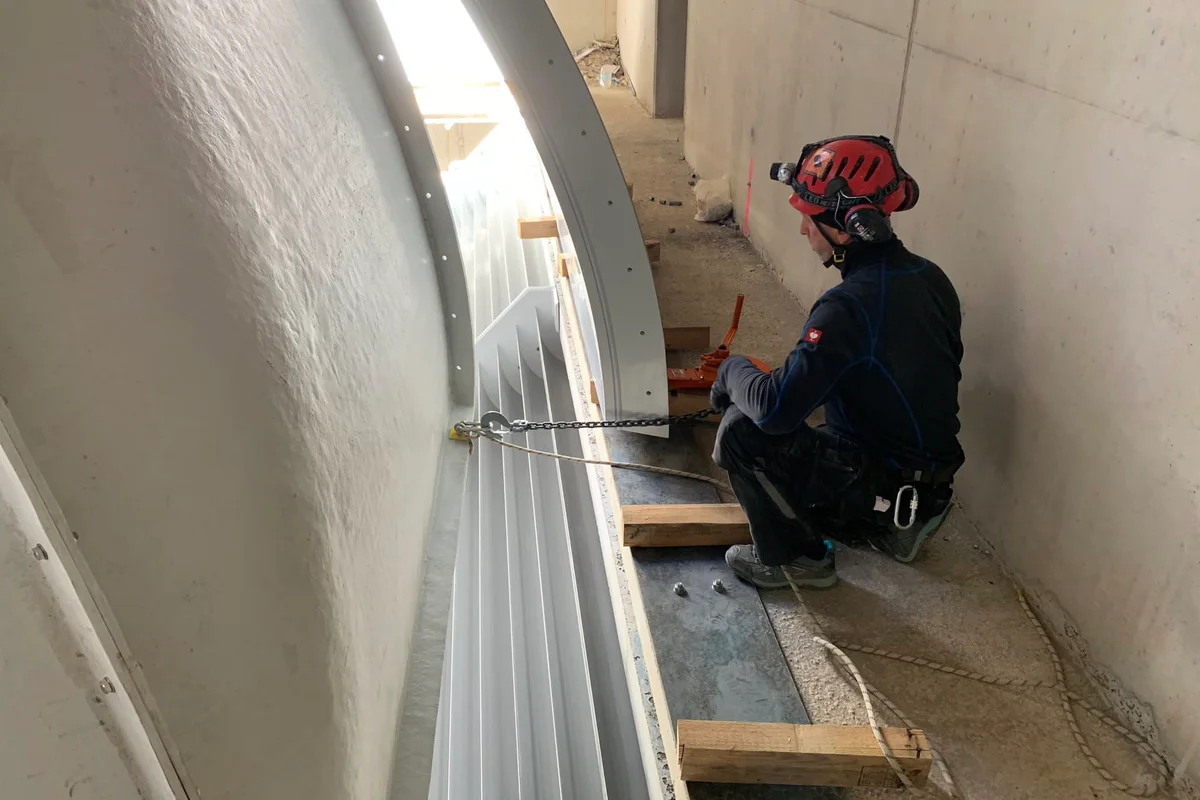

A technician positions a curved FRP air duct section containing turning vanes during the assembly of the Luxfly wind tunnel. This component forms a corner of the TT45 PRO recirculating loop, designed to redirect airflow within the concrete structure. The installation process involves precise alignment of the composite ductwork using rigging chains to fit the building envelope.

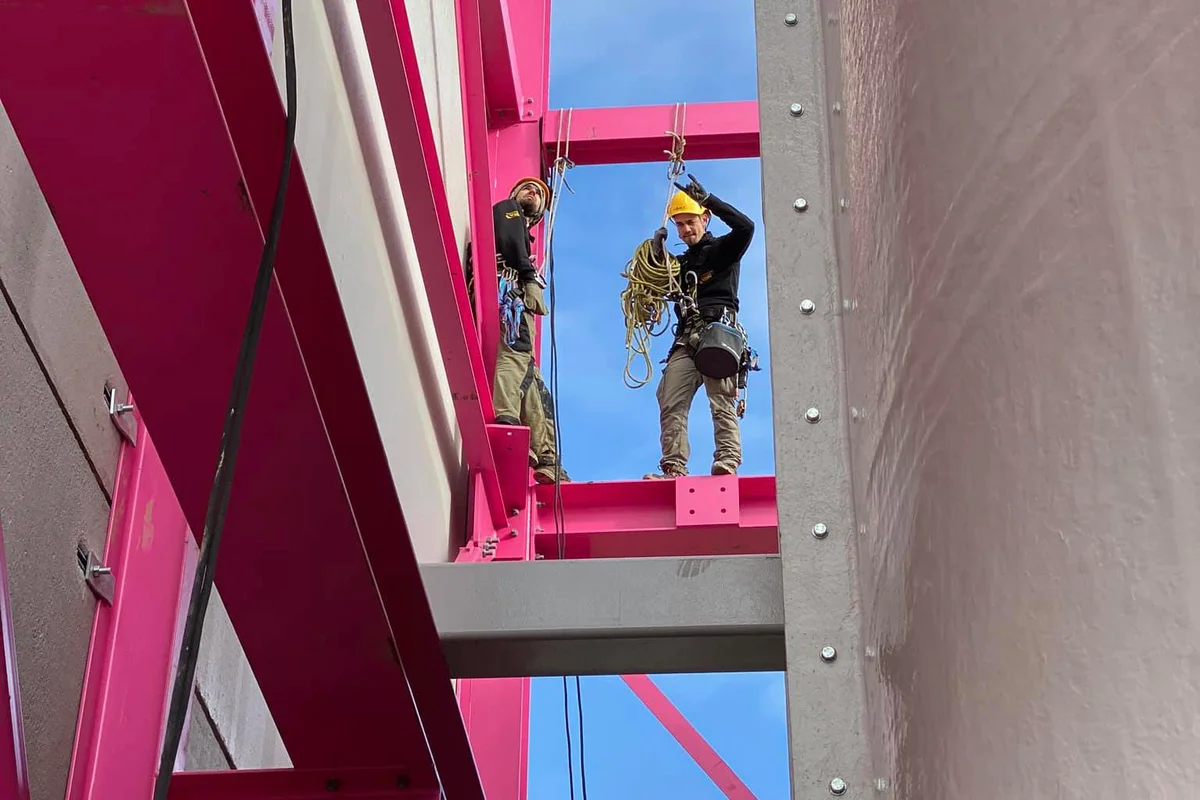

Two installation technicians equipped with safety harnesses and rigging gear stand on the structural steel framework during the construction of the Luxfly indoor skydiving facility in Luxembourg. The personnel perform rigging operations at height to align the TunnelTech TT45 PRO wind tunnel components with the building's distinct pink bearing structure. To the right, the exterior surface of the vertical wind tunnel assembly is visible adjacent to the steel beams.

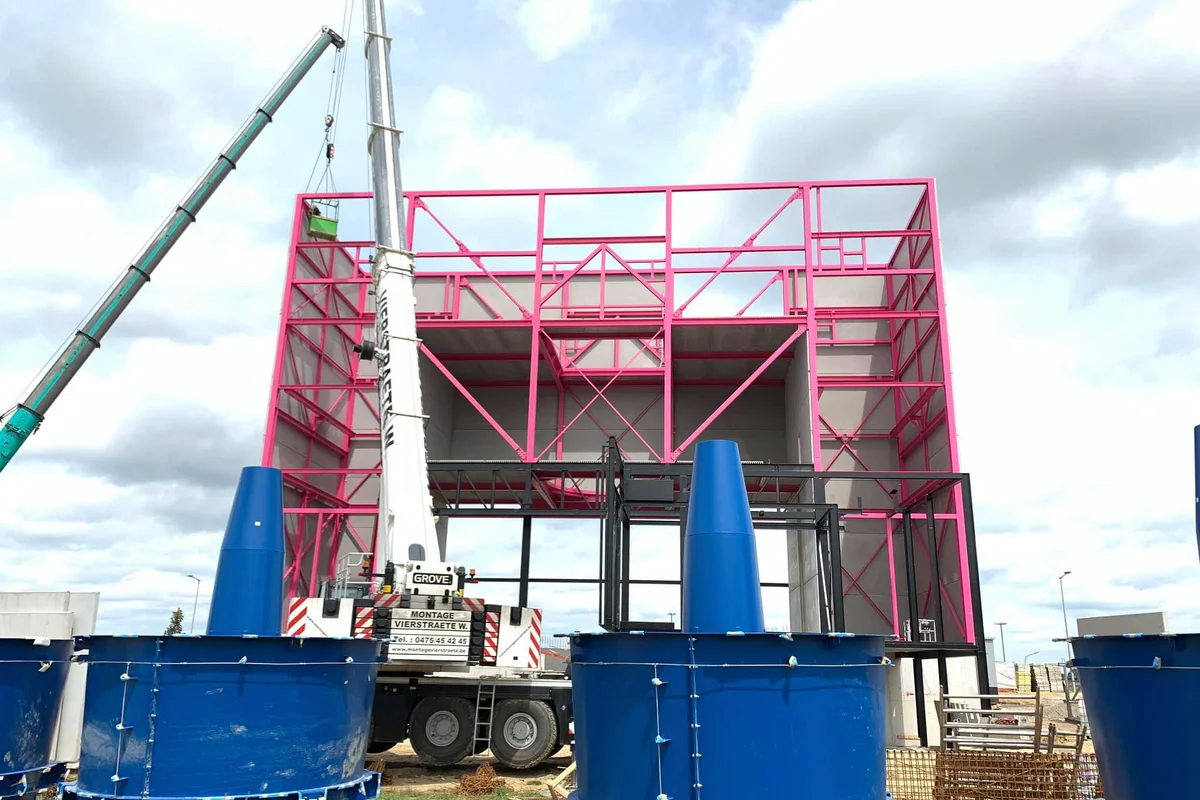

Large blue fan housing units containing stator vanes await installation at the Luxfly wind tunnel site in Luxembourg. A mobile crane operates adjacent to the facility's distinctive pink steel bearing structure. These heavy mechanical components form the static section of the axial fan assembly for the TT45 PRO system. The construction team stages the equipment on the ground before lifting it into the facility's return duct loop.
